RF108減速機詳細信息

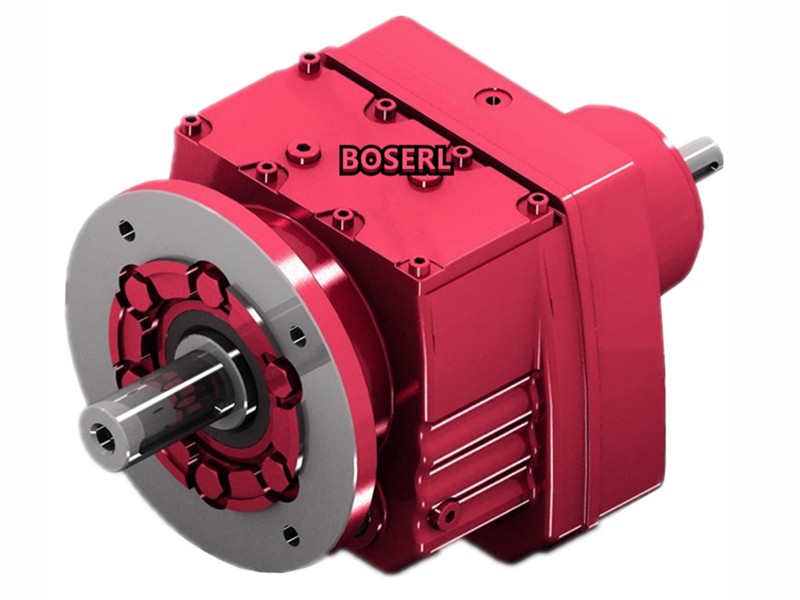

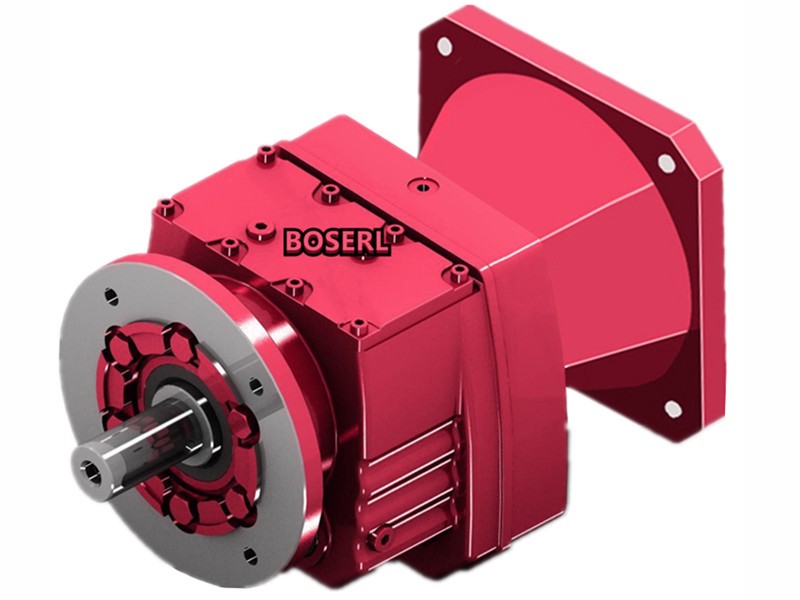

RF108減速機
訂購熱線：13360667204

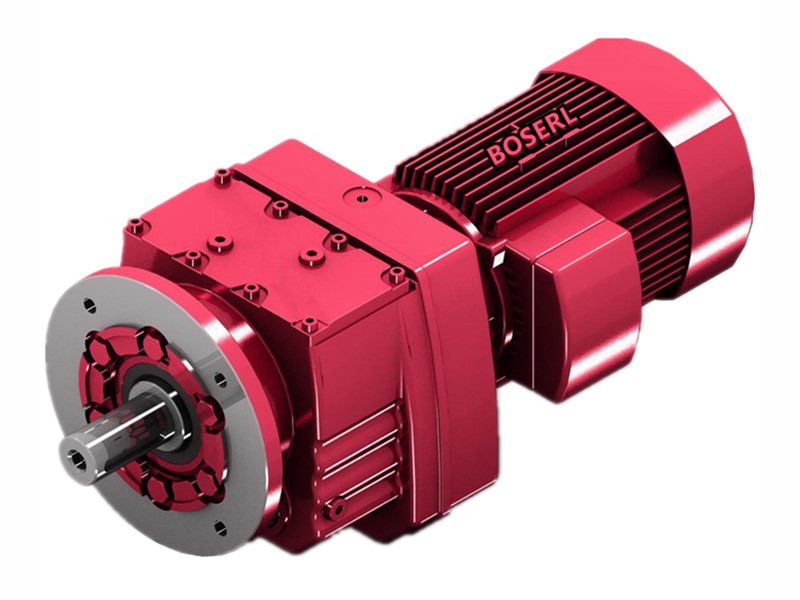

RF108減速機傳動比計算：齒輪減速馬達
傳送帶參數：齒輪直徑260，傳送18噸，傳送一分鐘18米
18米÷（0.26齒輪直徑X3.14）=22.05轉每分鐘
18噸換算成N=180000N
180000×0.13齒輪半徑×0.06摩擦系數=1404N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍1404×2=2808N.m
電機轉數1400÷輸出轉數22.05=63.49比
2808N.m輸出扭矩÷63.49比=44.23N.m電機扭矩
44.23N.m電機扭矩?fù)Q算成功率7.02KW左右
對應的RF108減速機選型參數：
型號：RF108-BEJ7.5KW
減速比：65.6
輸出轉數：22轉每分鐘
輸出扭矩：3190N.m
安全系數：1.35
RF108減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機
RF108立式硬齒面斜齒輪減速機型號：
RF107系列減速機參數大全：同軸斜齒輪減速電機
RF107減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y2.2KW | 2.2kw | 5.6rpm | 3760N.m | 1.15 |
| RF107-Y2.2KW | 2.2kw | 6.1rpm | 3450N.m | 1.25 |
| RF107-Y2.2KW | 2.2kw | 6.9rpm | 3040N.m | 1.4 |
| RF107-Y2.2KW | 2.2kw | 8.1rpm | 2580N.m | 1.65 |
| RF107-Y2.2KW | 2.2kw | 8.8rpm | 2380N.m | 1.8 |
| RF107-Y2.2KW | 2.2kw | 9.9rpm | 2120N.m | 2 |
| RF107-Y2.2KW | 2.2kw | 11rpm | 1910N.m | 2.2 |
| RF107-Y2.2KW | 2.2kw | 12rpm | 1730N.m | 2.5 |
| RF107-Y2.2KW | 2.2kw | 14rpm | 1530N.m | 2.8 |
| RF107-Y2.2KW | 2.2kw | 15rpm | 1390N.m | 3.1 |
RF107減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y3KW | 3kw | 6.1rpm | 4700N.m | 0.9 |
| RF107-Y3KW | 3kw | 6.9rpm | 4150N.m | 1.05 |
| RF107-Y3KW | 3kw | 8.1rpm | 3520N.m | 1.2 |
| RF107-Y3KW | 3kw | 8.8rpm | 3240N.m | 1.3 |
| RF107-Y3KW | 3kw | 9.9rpm | 2900N.m | 1.5 |
| RF107-Y3KW | 3kw | 11rpm | 2610N.m | 1.65 |
| RF107-Y3KW | 3kw | 12rpm | 2360N.m | 1.8 |
| RF107-Y3KW | 3kw | 14rpm | 2090N.m | 2 |
| RF107-Y3KW | 3kw | 15rpm | 1890N.m | 2.3 |
| RF107-Y3KW | 3kw | 18rpm | 1600N.m | 2.7 |
| RF107-Y3KW | 3kw | 19rpm | 1490N.m | 2.9 |
RF107減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y4KW | 4kw | 8.3rpm | 4590N.m | 0.95 |
| RF107-Y4KW | 4kw | 9rpm | 4220N.m | 1 |
| RF107-Y4KW | 4kw | 10rpm | 3780N.m | 1.15 |
| RF107-Y4KW | 4kw | 11rpm | 3400N.m | 1.25 |
| RF107-Y4KW | 4kw | 12rpm | 3080N.m | 1.4 |
| RF107-Y4KW | 4kw | 14rpm | 2730N.m | 1.6 |
| RF107-Y4KW | 4kw | 15rpm | 2470N.m | 1.75 |
| RF107-Y4KW | 4kw | 18rpm | 2090N.m | 2.1 |
| RF107-Y4KW | 4kw | 20rpm | 1940N.m | 2.2 |
| RF107-Y4KW | 4kw | 22rpm | 1750N.m | 2.5 |
| RF107-Y4KW | 4kw | 24rpm | 1580N.m | 2.7 |
| RF107-Y4KW | 4kw | 27rpm | 1400N.m | 3.1 |
RF107減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y5.5KW | 5.5kw | 11rpm | 4640N.m | 0.95 |
| RF107-Y5.5KW | 5.5kw | 12rpm | 4200N.m | 1 |
| RF107-Y5.5KW | 5.5kw | 14rpm | 3720N.m | 1.15 |
| RF107-Y5.5KW | 5.5kw | 16rpm | 3360N.m | 1.3 |
| RF107-Y5.5KW | 5.5kw | 18rpm | 2850N.m | 1.5 |
| RF107-Y5.5KW | 5.5kw | 20rpm | 2640N.m | 1.6 |
| RF107-Y5.5KW | 5.5kw | 22rpm | 2380N.m | 1.8 |
| RF107-Y5.5KW | 5.5kw | 24rpm | 2150N.m | 2 |
| RF107-Y5.5KW | 5.5kw | 27rpm | 1910N.m | 2.2 |
| RF107-Y5.5KW | 5.5kw | 30rpm | 1730N.m | 2.5 |
| RF107-Y5.5KW | 5.5kw | 36rpm | 1460N.m | 2.9 |
RF107減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y7.5KW | 7.5kw | 16rpm | 4590N.m | 0.95 |
| RF107-Y7.5KW | 7.5kw | 18rpm | 3890N.m | 1.1 |
| RF107-Y7.5KW | 7.5kw | 20rpm | 3610N.m | 1.2 |
| RF107-Y7.5KW | 7.5kw | 22rpm | 3250N.m | 1.3 |
| RF107-Y7.5KW | 7.5kw | 24rpm | 2940N.m | 1.45 |
| RF107-Y7.5KW | 7.5kw | 27rpm | 2610N.m | 1.65 |
| RF107-Y7.5KW | 7.5kw | 30rpm | 2360N.m | 1.8 |
| RF107-Y7.5KW | 7.5kw | 36rpm | 2000N.m | 2.2 |
| RF107-Y7.5KW | 7.5kw | 41rpm | 1740N.m | 2.5 |
| RF107-Y7.5KW | 7.5kw | 49rpm | 1460N.m | 2.9 |
| RF107-Y7.5KW | 7.5kw | 47rpm | 1520N.m | 2.8 |
| RF107-Y7.5KW | 7.5kw | 52rpm | 1360N.m | 3.2 |
| RF107-Y7.5KW | 7.5kw | 58rpm | 1230N.m | 3.5 |
| RF107-Y7.5KW | 7.5kw | 64rpm | 1120N.m | 3.8 |
RF107減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y11KW | 11kw | 22rpm | 4710N.m | 0.9 |
| RF107-Y11KW | 11kw | 25rpm | 4270N.m | 1 |
| RF107-Y11KW | 11kw | 28rpm | 3790N.m | 1.15 |
| RF107-Y11KW | 11kw | 31rpm | 3420N.m | 1.25 |
| RF107-Y11KW | 11kw | 36rpm | 2900N.m | 1.5 |
| RF107-Y11KW | 11kw | 41rpm | 2530N.m | 1.7 |
| RF107-Y11KW | 11kw | 50rpm | 2120N.m | 2 |
| RF107-Y11KW | 11kw | 47rpm | 2210N.m | 1.95 |
| RF107-Y11KW | 11kw | 53rpm | 1980N.m | 2.2 |
| RF107-Y11KW | 11kw | 59rpm | 1790N.m | 2.4 |
| RF107-Y11KW | 11kw | 65rpm | 1620N.m | 2.6 |
| RF107-Y11KW | 11kw | 73rpm | 1440N.m | 3 |
| RF107-Y11KW | 11kw | 80rpm | 1310N.m | 3.3 |
RF107減速機配15KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y15KW | 15kw | 31rpm | 4670N.m | 0.9 |
| RF107-Y15KW | 15kw | 36rpm | 3960N.m | 1.1 |
| RF107-Y15KW | 15kw | 41rpm | 3460N.m | 1.25 |
| RF107-Y15KW | 15kw | 50rpm | 2890N.m | 1.5 |
| RF107-Y15KW | 15kw | 47rpm | 3020N.m | 1.4 |
| RF107-Y15KW | 15kw | 53rpm | 2710N.m | 1.6 |
| RF107-Y15KW | 15kw | 59rpm | 2440N.m | 1.75 |
| RF107-Y15KW | 15kw | 65rpm | 2220N.m | 1.95 |
| RF107-Y15KW | 15kw | 73rpm | 1970N.m | 2.2 |
| RF107-Y15KW | 15kw | 80rpm | 1790N.m | 2.4 |
| RF107-Y15KW | 15kw | 93rpm | 1540N.m | 2.8 |
| RF107-Y15KW | 15kw | 107rpm | 1340N.m | 3.2 |
RF107減速機配18.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y18.5KW | 18.5kw | 36rpm | 4880N.m | 0.9 |
| RF107-Y18.5KW | 18.5kw | 41rpm | 4260N.m | 1 |
| RF107-Y18.5KW | 18.5kw | 50rpm | 3560N.m | 1.2 |
| RF107-Y18.5KW | 18.5kw | 59rpm | 3010N.m | 1.45 |
| RF107-Y18.5KW | 18.5kw | 65rpm | 2730N.m | 1.55 |
| RF107-Y18.5KW | 18.5kw | 73rpm | 2420N.m | 1.75 |
| RF107-Y18.5KW | 18.5kw | 80rpm | 2200N.m | 1.95 |
| RF107-Y18.5KW | 18.5kw | 93rpm | 1890N.m | 2.3 |
| RF107-Y18.5KW | 18.5kw | 107rpm | 1650N.m | 2.6 |
| RF107-Y18.5KW | 18.5kw | 126rpm | 1400N.m | 3.1 |
| RF107-Y18.5KW | 18.5kw | 144rpm | 1220N.m | 3.5 |
| RF107-Y18.5KW | 18.5kw | 186rpm | 950N.m | 3.1 |
| RF107-Y18.5KW | 18.5kw | 219rpm | 800N.m | 3.7 |
RF107減速機配22KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y22KW | 22kw | 41rpm | 5070N.m | 0.85 |
| RF107-Y22KW | 22kw | 50rpm | 4240N.m | 1 |
| RF107-Y22KW | 22kw | 59rpm | 3580N.m | 1.2 |
| RF107-Y22KW | 22kw | 65rpm | 3280N.m | 1.3 |
| RF107-Y22KW | 22kw | 73rpm | 2880N.m | 1.5 |
| RF107-Y22KW | 22kw | 80rpm | 2620N.m | 1.65 |
| RF107-Y22KW | 22kw | 93rpm | 2250N.m | 1.9 |
| RF107-Y22KW | 22kw | 107rpm | 1960N.m | 2.2 |
| RF107-Y22KW | 22kw | 126rpm | 1660N.m | 2.6 |
| RF107-Y22KW | 22kw | 144rpm | 1450N.m | 3 |
| RF107-Y22KW | 22kw | 170rpm | 1230N.m | 3.5 |
| RF107-Y22KW | 22kw | 186rpm | 1130N.m | 2.6 |
| RF107-Y22KW | 22kw | 219rpm | 950N.m | 3.1 |
| RF107-Y22KW | 22kw | 251rpm | 830N.m | 3.5 |
RF107減速機配30KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y30KW | 30kw | 74rpm | 3900N.m | 1.1 |
| RF107-Y30KW | 30kw | 81rpm | 3540N.m | 1.2 |
| RF107-Y30KW | 30kw | 94rpm | 3040N.m | 1.4 |
| RF107-Y30KW | 30kw | 108rpm | 2650N.m | 1.6 |
| RF107-Y30KW | 30kw | 127rpm | 2250N.m | 1.9 |
| RF107-Y30KW | 30kw | 146rpm | 1970N.m | 2.2 |
| RF107-Y30KW | 30kw | 172rpm | 1660N.m | 2.6 |
| RF107-Y30KW | 30kw | 188rpm | 1530N.m | 1.95 |
| RF107-Y30KW | 30kw | 221rpm | 1290N.m | 2.3 |
| RF107-Y30KW | 30kw | 253rpm | 1130N.m | 2.6 |
| RF107-Y30KW | 30kw | 300rpm | 960N.m | 3 |
RF107減速機配37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y37KW | 45kw | 95rpm | 4540N.m | 0.95 |
| RF107-Y37KW | 45kw | 108rpm | 3960N.m | 1.1 |
| RF107-Y37KW | 45kw | 128rpm | 3360N.m | 1.3 |
| RF107-Y37KW | 45kw | 146rpm | 2940N.m | 1.45 |
| RF107-Y37KW | 45kw | 173rpm | 2480N.m | 1.75 |
| RF107-Y37KW | 45kw | 188rpm | 2280N.m | 1.3 |
| RF107-Y37KW | 45kw | 222rpm | 1930N.m | 1.55 |
| RF107-Y37KW | 45kw | 254rpm | 1690N.m | 1.75 |
| RF107-Y37KW | 45kw | 301rpm | 1420N.m | 2 |
RF107減速機配45KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| RF107-Y45KW | 45kw | 95rpm | 4540N.m | 0.95 |
| RF107-Y45KW | 45kw | 108rpm | 3960N.m | 1.1 |
| RF107-Y45KW | 45kw | 128rpm | 3360N.m | 1.3 |
| RF107-Y45KW | 45kw | 146rpm | 2940N.m | 1.45 |
| RF107-Y45KW | 45kw | 173rpm | 2480N.m | 1.75 |
| RF107-Y45KW | 45kw | 188rpm | 2280N.m | 1.3 |
| RF107-Y45KW | 45kw | 222rpm | 1930N.m | 1.55 |
| RF107-Y45KW | 45kw | 254rpm | 1690N.m | 1.75 |
| RF107-Y45KW | 45kw | 301rpm | 1420N.m | 2 |
RF108減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R108減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RF108減速機 RF107立式硬齒面斜齒輪減速機 RF107系列減速機 RF107減速機傳動比 RF107減速機選型參數 RF107減速機CAD三維圖
