KA168減速電機詳細信息

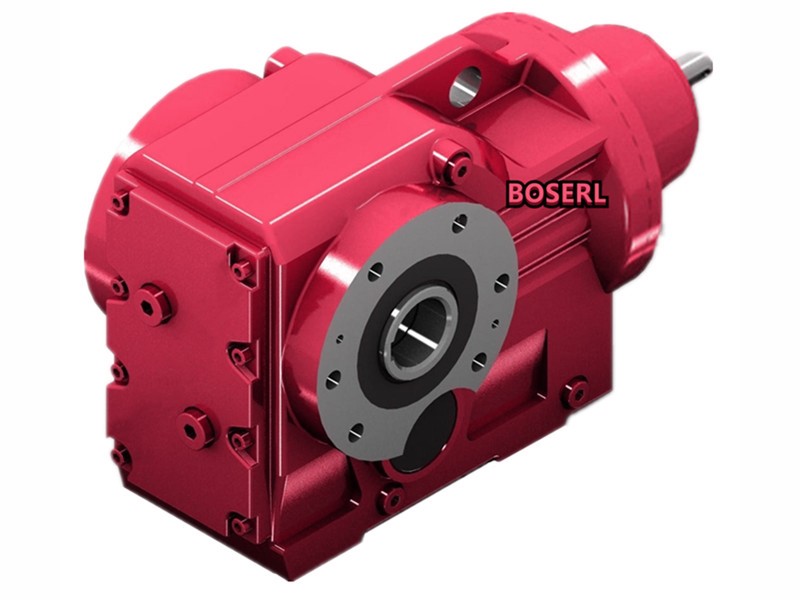

KA168減速電機
訂購熱線：13360667204
KA168減速電機選型計算：齒輪減速馬達
混泥土攪拌罐參數：攪拌罐負載6400公斤，攪動24圈/每分鐘，攪動齒輪直徑146
電機轉數1400÷24圈（輸出轉速）=減速比58.33
攪拌6400公斤混泥土=62720N
62720N×0.073攪動齒輪半徑=4578.56×3攪拌泥狀物料扭矩放大三倍=13735.68N.m
13735.68N.m÷58.33減速比=235.48N.m電機扭矩
235.48N.m電機扭矩?fù)Q算成功率37.38KW以上
對應的KA168減速機選型參數：
型號：KA168-BVP37KW
減速比：60.74
輸出轉數：24轉每分鐘
輸出扭矩：14500N.m
安全系數：2.2

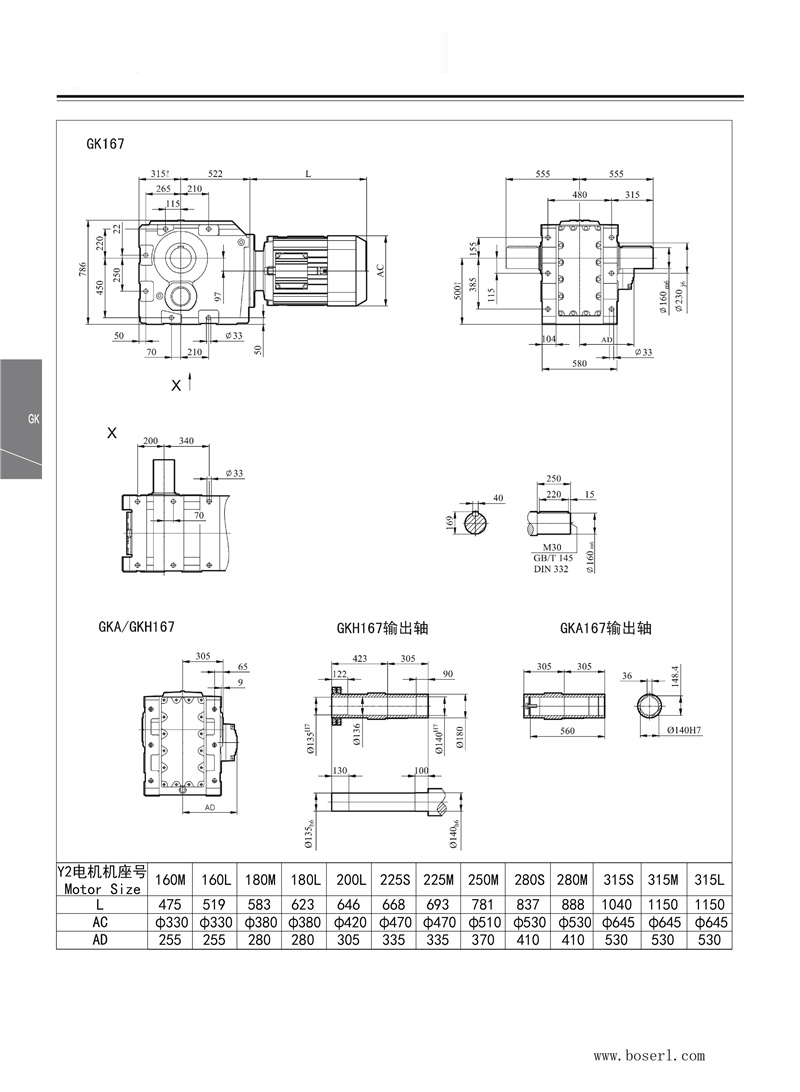

KA168減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）空心軸減速機
KA168斜齒輪錐齒輪減速機型號：

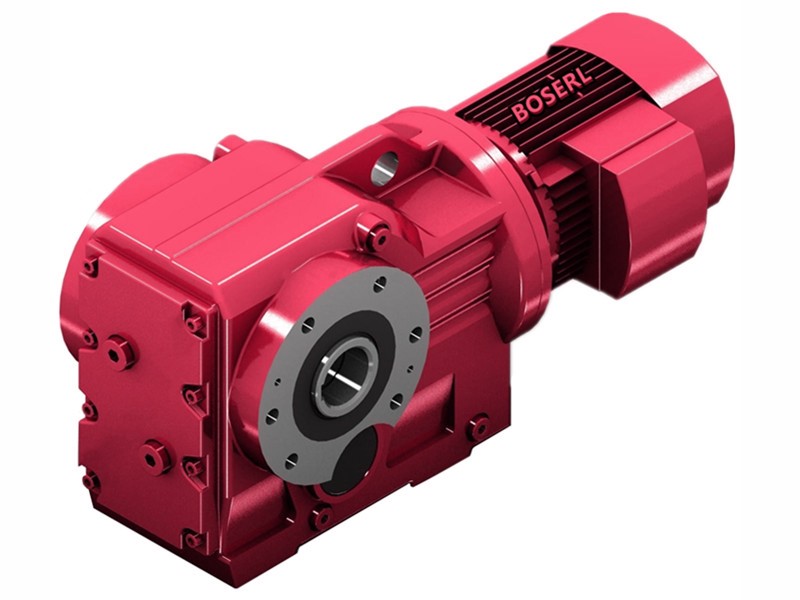

KA168減速電機型號參數：直角減速機
KA168減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y11KW | 11KW | 8.9rpm | 11800 | 2.7 |
| K167Y11KW | 11KW | 11rpm | 9710 | 3.3 |
KA168減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y15KW | 15KW | 8.9rpm | 16100N.m | 2 |
| K167Y15KW | 15KW | 11rpm | 13200N.m | 2.4 |
KA168減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y18.5KW | 18.5KW | 11rpm | 16300N.m | 1.95 |
| K167Y18.5KW | 18.5KW | 13rpm | 13200N.m | 2.4 |
| K167Y18.5KW | 18.5KW | 17rpm | 10600N.m | 3 |
KA168減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y22KW | 22KW | 11rpm | 19400N.m | 1.65 |
| K167Y22KW | 22KW | 13rpm | 15800N.m | 2 |
| K167Y22KW | 22KW | 17rpm | 12600N.m | 2.5 |
| K167Y22KW | 22KW | 19rpm | 11200N.m | 2.8 |
KA168減速機配30KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y30KW | 30KW | 13rpm | 21300N.m | 1.5 |
| K167Y30KW | 30KW | 17rpm | 17100N.m | 1.9 |
| K167Y30KW | 30KW | 19rpm | 15200N.m | 2.1 |
| K167Y30KW | 30KW | 22rpm | 13200N.m | 2.4 |
| K167Y30KW | 30KW | 24rpm | 11800N.m | 2.7 |
KA168減速機配37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y37KW | 37KW | 13rpm | 26300N.m | 1.2 |
| K167Y37KW | 37KW | 17rpm | 21100N.m | 1.5 |
| K167Y37KW | 37KW | 19rpm | 18700N.m | 1.7 |
| K167Y37KW | 37KW | 22rpm | 16300N.m | 1.95 |
| K167Y37KW | 37KW | 24rpm | 14500N.m | 2.2 |
| K167Y37KW | 37KW | 28rpm | 12400N.m | 2.6 |
KA168減速機配45KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y45KW | 45KW | 13rpm | 31800N.m | 1 |
| K167Y45KW | 45KW | 17rpm | 25500N.m | 1.25 |
| K167Y45KW | 45KW | 19rpm | 22600N.m | 1.4 |
| K167Y45KW | 45KW | 22rpm | 19700N.m | 1.6 |
| K167Y45KW | 45KW | 24rpm | 17600N.m | 1.8 |
| K167Y45KW | 45KW | 29rpm | 15000N.m | 2.1 |
| K167Y45KW | 45KW | 34rpm | 12400N.m | 2.6 |
KA168減速機配55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y55KW | 55KW | 17rpm | 31200N.m | 1 |
| K167Y55KW | 55KW | 19rpm | 27800N.m | 1.15 |
| K167Y55KW | 55KW | 22rpm | 24200N.m | 1.3 |
| K167Y55KW | 55KW | 24rpm | 21600N.m | 1.5 |
| K167Y55KW | 55KW | 28rpm | 18400N.m | 1.75 |
| K167Y55KW | 55KW | 34rpm | 15200N.m | 2.1 |
| K167Y55KW | 55KW | 30rpm | 13000N.m | 2.4 |
KA168減速機配75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y75KW | 75KW | 19rpm | 37800N.m | 0.85 |
| K167Y75KW | 75KW | 22rpm | 32900N.m | 0.95 |
| K167Y75KW | 75KW | 24rpm | 29300N.m | 1.1 |
| K167Y75KW | 75KW | 29rpm | 25000N.m | 1.3 |
| K167Y75KW | 75KW | 34rpm | 20700N.m | 1.55 |
| K167Y75KW | 75KW | 40rpm | 17700N.m | 1.8 |
| K167Y75KW | 75KW | 46rpm | 15600N.m | 2 |
| K167Y75KW | 75KW | 51rpm | 13900N.m | 2.3 |
| K167Y75KW | 75KW | 60rpm | 11800N.m | 2.7 |
KA168減速機配90KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y90KW | 90KW | 22rpm | 39500N.m | 0.8 |
| K167Y90KW | 90KW | 24rpm | 35200N.m | 0.9 |
| K167Y90KW | 90KW | 29rpm | 30000N.m | 1.05 |
| K167Y90KW | 90KW | 34rpm | 24900N.m | 1.3 |
| K167Y90KW | 90KW | 40rpm | 21200N.m | 1.5 |
| K167Y90KW | 90KW | 46rpm | 18700N.m | 1.7 |
| K167Y90KW | 90KW | 51rpm | 16700N.m | 1.9 |
| K167Y90KW | 90KW | 60rpm | 14200N.m | 2.2 |
| K167Y90KW | 90KW | 73rpm | 11700N.m | 2.7 |
| K167Y90KW | 90KW | 85rpm | 10000N.m | 3.2 |
KA168減速機配110KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y110KW | 110KW | 29rpm | 36600N.m | 0.85 |
| K167Y110KW | 110KW | 35rpm | 30300N.m | 1.05 |
| K167Y110KW | 110KW | 41rpm | 25900N.m | 1.25 |
| K167Y110KW | 110KW | 46rpm | 22800N.m | 1.4 |
| K167Y110KW | 110KW | 52rpm | 20300N.m | 1.55 |
| K167Y110KW | 110KW | 60rpm | 17300N.m | 1.85 |
| K167Y110KW | 110KW | 73rpm | 14300N.m | 2.2 |
| K167Y110KW | 110KW | 86rpm | 12200N.m | 2.6 |
KA168減速機配132KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y132KW | 132KW | 35rpm | 36400N.m | 0.9 |
| K167Y132KW | 132KW | 41rpm | 21000N.m | 1.05 |
| K167Y132KW | 132KW | 46rpm | 27300N.m | 1.15 |
| K167Y132KW | 132KW | 52rpm | 24400N.m | 1.3 |
| K167Y132KW | 132KW | 61rpm | 20800N.m | 1.55 |
| K167Y132KW | 132KW | 73rpm | 17200N.m | 1.85 |
| K167Y132KW | 132KW | 86rpm | 14700N.m | 2.2 |
KA168減速機配160KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y160KW | 160KW | 41rpm | 37600N.m | 0.85 |
| K167Y160KW | 160KW | 61rpm | 25200N.m | 1.25 |
| K167Y160KW | 160KW | 73rpm | 20900N.m | 1.55 |
| K167Y160KW | 160KW | 86rpm | 17800N.m | 1.8 |
KA168減速機配200KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K167Y200KW | 200KW | 60rpm | 31600N.m | 1 |
| K167Y200KW | 200KW | 60rpm | 26100N.m | 1.2 |
| K167Y200KW | 200KW | 60rpm | 22300N.m | 1.45 |
KA168減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K168減速機
關鍵詞:通孔減速機型一體式_空心軸減速機配電機_直角中空減速機_中孔輸出減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速馬達型號：KA38減速機,KA48減速機,KA58減速機,KA68減速機,KA78減速機,KA88減速機,KA98減速機,KA108減速機,KA128減速機,KA158減速機,KA168減速機,KA188減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KA168減速電機 KA167斜齒輪錐齒輪減速機 KA167減速機功率 KA167減速機基座尺寸 KA167減速機模型 KA167減速機型號參數
